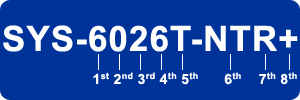

SuperServers with 3.5" Hard Drives
| Character |
Representation |
Options |
| 1st |
Number of processor slots |
- 5 = Single processor slot
- 6 = Dual processor slots
- 7 = Dual processor slots (Tower)
|
| 2nd |
Reserved Digit |
|
| 3rd |
Form Factor |
- 1 = 1U
- 2 = 2U
- 3 = 3U
- 4 = 4U
|
| 4th |
System Generation |
- 5 = X7 Series
- 6 = X8 Series
- 7 = X9 Series
|
| 5th |
Chipset |
- A = Atom
- B = Bigby/Skt B2
- C = Cougar Point
- G = GPGPU
- I = Foxhollow
- M = Mukilteo
- P = Pxx
- R = Socket R
- ST = Storage Server
- T = Tylersburg
- xT = x: platform (ex: T-Twin, G-GPU); T: Tylersburg
|
| 6th |
HDD Interface |
- 3 = SAS
- 6 = SAS2
- A = Workstation
- D = Desktop
- E = Extension Slot with Riser
- H = Hot Swap
- M = Mini-Chassis
- P = Internal slot
- NT = SATA without UIO
- T = SATA
- U = UIO
|
| 7th |
Power Redundancy |
- R = Redundant Power Supply
|
| 8th |
Additional |
- + = 18(x8)/24(x9) DIMM memory slots
- F = On board BMC (IPMI)
- T = 10 Gigabit Ethernet
- 4 = 4 Independent LAN ports
|
